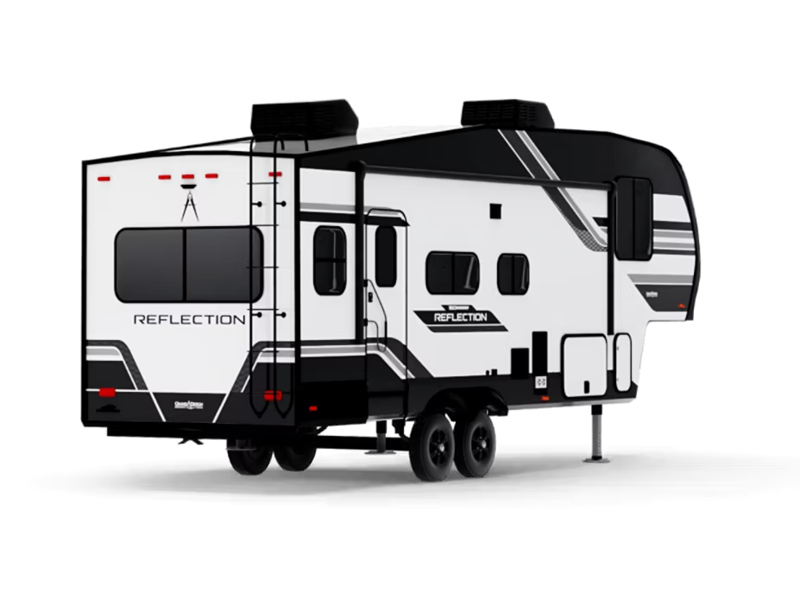

Grand Design Reflection 150 Series Fifth Wheel

Previous
Next
1 of 13

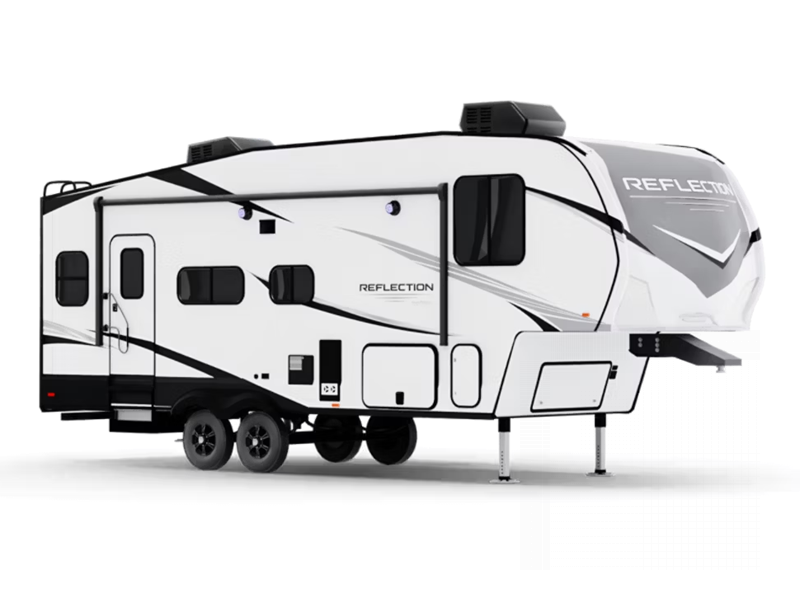

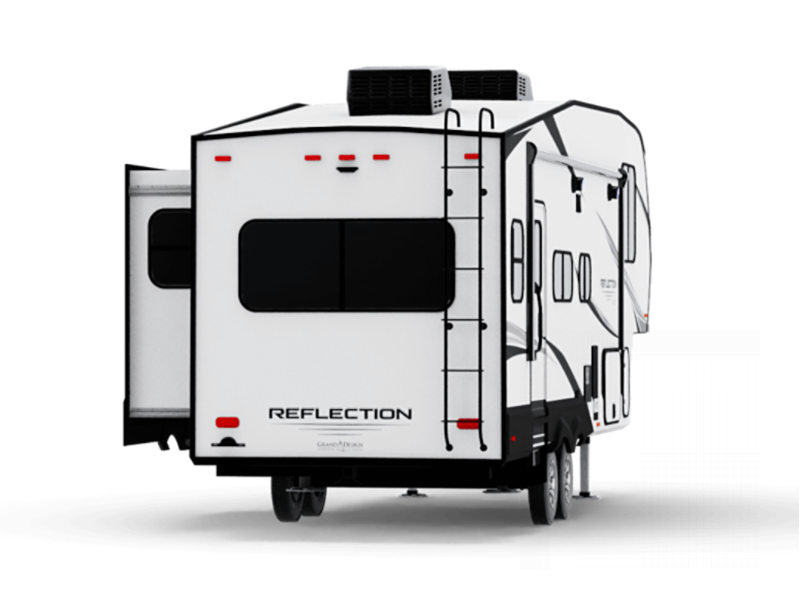

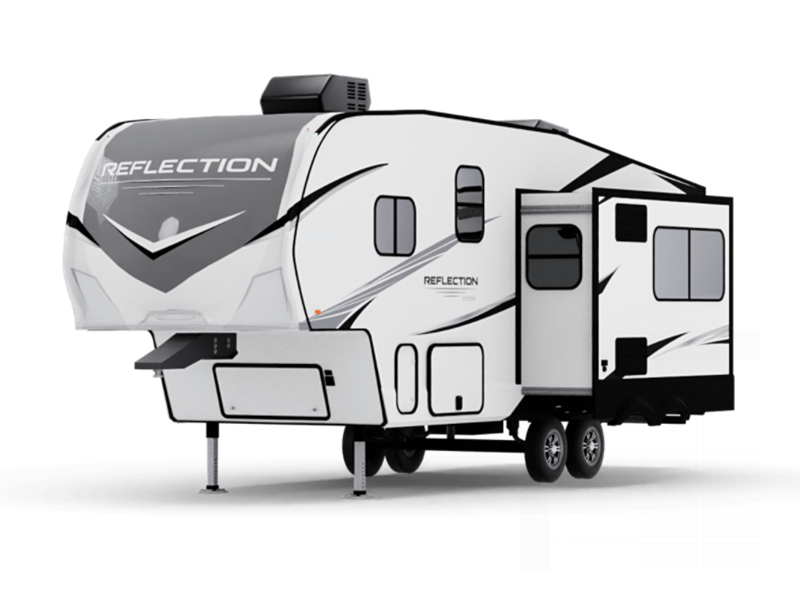

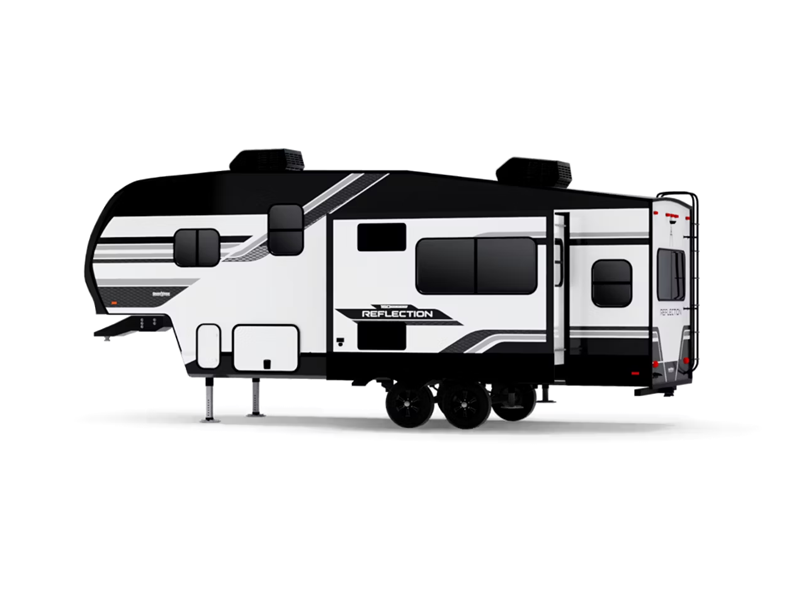

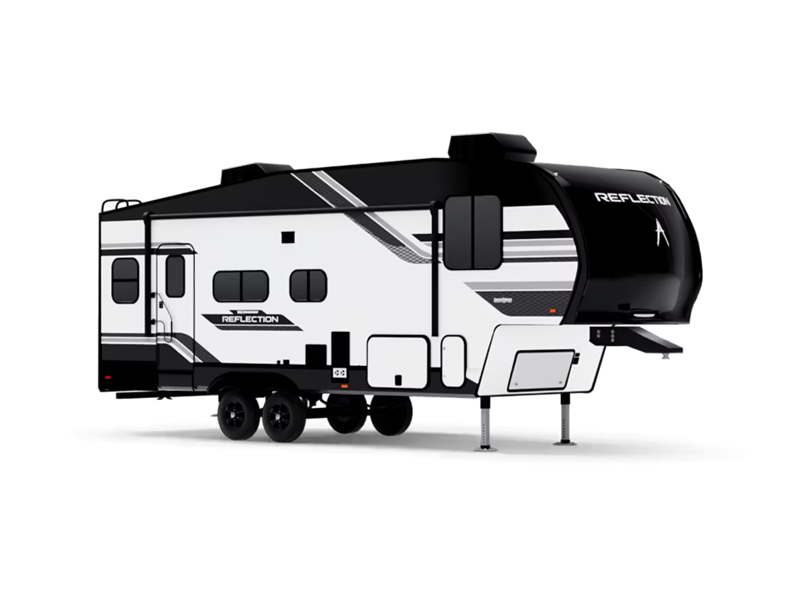

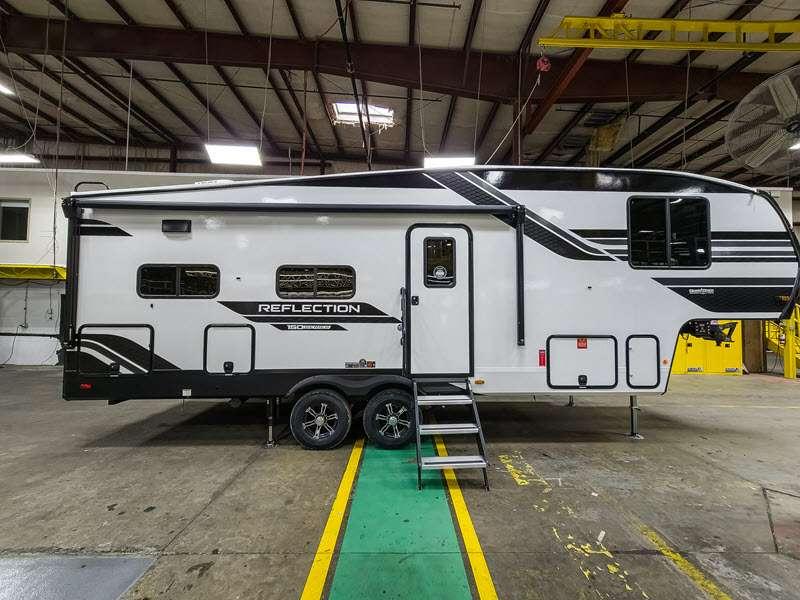

Grand Design is proud to introduce the all new Reflection 150 Series fifth wheel to their lineup! The 150 Series is specifically designed for those half-ton towable short bed trucks, and provides a hitch features a 90% turning radius without the use of a slider hitch in any 5' 6" truck bed making this the perfect choice for many everyday short bed models. You will also find these units to be over 1,000 lb. lighter with dry weights starting at under 7,000 lbs., as well as a lighter hitch weight by up to 250 lbs., with more payload capacity available too.



There is currently one model featured including a rear living layout with one nice slide for added interior space.  The Reflection 150 Series offers the same quality in construction and features that all Grand Design products are known for, and will provide you with a fifth wheel that you will be proud to own, and will last you for years to come!



Come get your new Reflection 150 Series model today, and begin your camping season making memories that are sure to last a lifetime!

  • Reflection 150 Series 230RL

    Reflection 150 Series 230RL Floorplan Image

    Take a Virtual Tour

    Enjoy all of your camping excursions with this Grand Design Reflection 150 ... more about Reflection 150 Series 230RL

    Specifications

    Sleeps 5
    Slides 1
    Length 28 ft 4 in
    Ext Width 8 ft
    Ext Height 11 ft 8 in
    Int Height 0 ft
    Hitch Weight 1195 lbs
    Gross Weight 9495 lbs
    Dry Weight 6895 lbs
    Fresh Water Capacity 52 gals
    Grey Water Capacity 71 gals
    Black Water Capacity 39 gals
    Furnace BTU 35000 btu
    Available Beds Queen
    Refrigerator Size 8 cu ft
    Cooktop Burners 3
    Shower Size 30" x 36" in
    Number of Awnings 1
    LP Tank Capacity 30 lbs.
    Water Heater Type Quick Recovery
    AC BTU 15000 btu
    TV Info Hi Def LED with Swing Arm - Living Room
    Awning Info 17' Adjustable Power Awning with LED Lights
    Axle Count 2
    Number of LP Tanks 2
    Shower Type Standard
    Electrical Service 30 amp

    Similar Floorplans

  • Reflection 150 Series 295RL

    Reflection 150 Series 295RL Floorplan Image

    For a fun and enjoyable camping experience, choose this double slide out ... more about Reflection 150 Series 295RL

    Specifications

    Sleeps 4
    Slides 2
    Length 32 ft 9 in
    Ext Width 0 ft
    Ext Height 11 ft 9 in
    Int Height 0 ft
    Hitch Weight 1391 lbs
    Dry Weight 8496 lbs
    Fresh Water Capacity 52 gals
    Grey Water Capacity 78 gals
    Black Water Capacity 39 gals
    Furnace BTU 35000 btu
    Available Beds Queen
    Refrigerator Size 8 cu ft
    Cooktop Burners 3
    Number of Awnings 1
    LP Tank Capacity 30 lbs.
    TV Info LR 40" TV
    Awning Info 13'6"
    Number of LP Tanks 2
    Shower Type Standard

    Similar Floorplans

  • Reflection 150 Series 220RK

    Reflection 150 Series 220RK Floorplan Image

    This Grand Design Reflection 150 Series fifth wheel features all of the ... more about Reflection 150 Series 220RK

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 3
    Slides 1
    Length 26 ft 9 in
    Ext Width 8 ft
    Ext Height 11 ft 8 in
    Int Height 0 ft
    Exterior Color Ivory
    Hitch Weight 1170 lbs
    Gross Weight 8995 lbs
    Dry Weight 6595 lbs
    Fresh Water Capacity 52 gals
    Grey Water Capacity 71 gals
    Black Water Capacity 39 gals
    Furnace BTU 35000 btu
    Available Beds Queen
    Refrigerator Type Double Door
    Refrigerator Size 8 cu ft
    Shower Size 30" x 36" in
    LP Tank Capacity 30 lbs.
    Water Heater Capacity 6 gal.
    Water Heater Type Quick Recover
    AC BTU 15000 btu
    TV Info LED TV in Living Room
    Awning Info 16' Electric w/LED Lights
    Axle Count 2
    Number of LP Tanks 2
    Shower Type Standard
    Electrical Service 30 amp

    Similar Floorplans

  • Reflection 150 Series 290BH

    Reflection 150 Series 290BH Floorplan Image

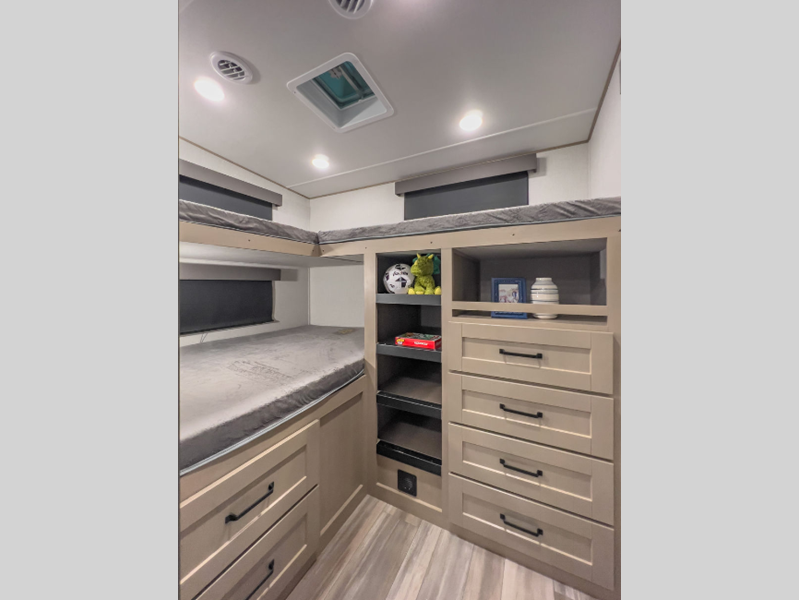

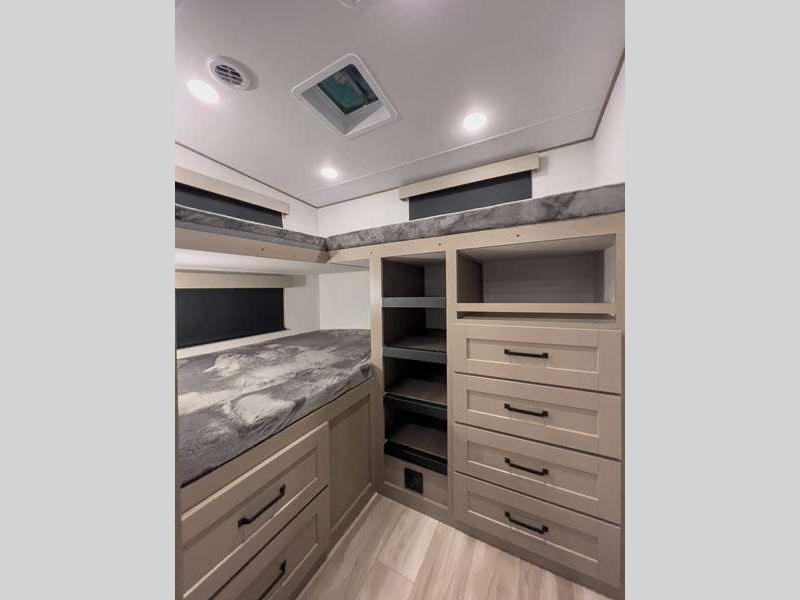

    This Reflection 150 Series 290BH fifth wheel provides a private bunkhouse for ... more about Reflection 150 Series 290BH

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 7
    Slides 1
    Length 34 ft 1 in
    Ext Height 11 ft 9 in
    Hitch Weight 1280 lbs
    Gross Weight 9995 lbs
    Dry Weight 8294 lbs
    Fresh Water Capacity 52 gals
    Grey Water Capacity 78 gals
    Black Water Capacity 39 gals
    Furnace BTU 35000 btu
    Number Of Bunks 3
    Available Beds Queen
    Refrigerator Size 8 cu ft
    Cooktop Burners 3
    Shower Size 30" x 36" in
    Number of Awnings 1
    LP Tank Capacity 30 lbs.
    Water Heater Capacity 6 gal.
    TV Info LR 40" LED, Bunk TV Option
    Awning Info 21'
    Number of LP Tanks 2

    Similar Floorplans

Reflection 150 Series Features:

Standard Features (2018)



Exterior

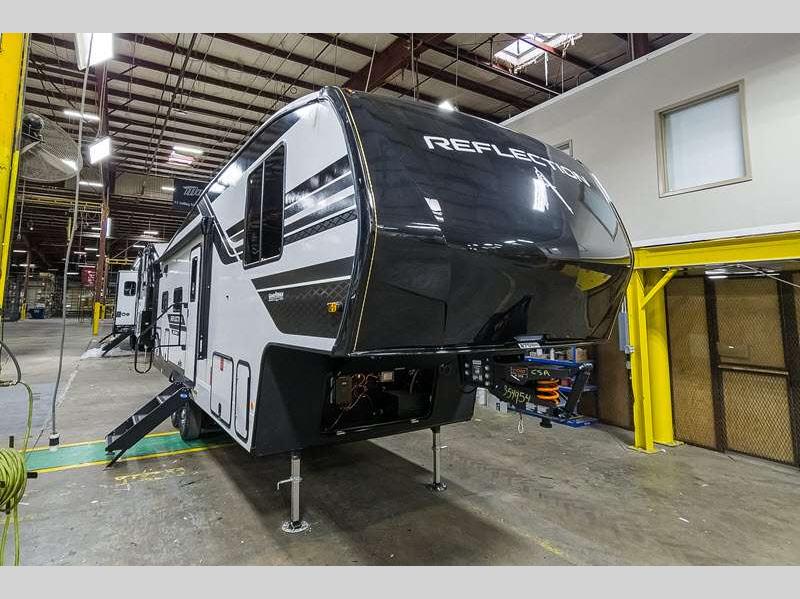

  • Aerodynamic Front Cap with Max Turn Radius
  • Marine Grade LED Hitch Light
  • Rubberized Suspension Equalizer
  • Aluminum Wheels with E-Rated Tires
  • 80% Tint Radius Safety Glass Windows

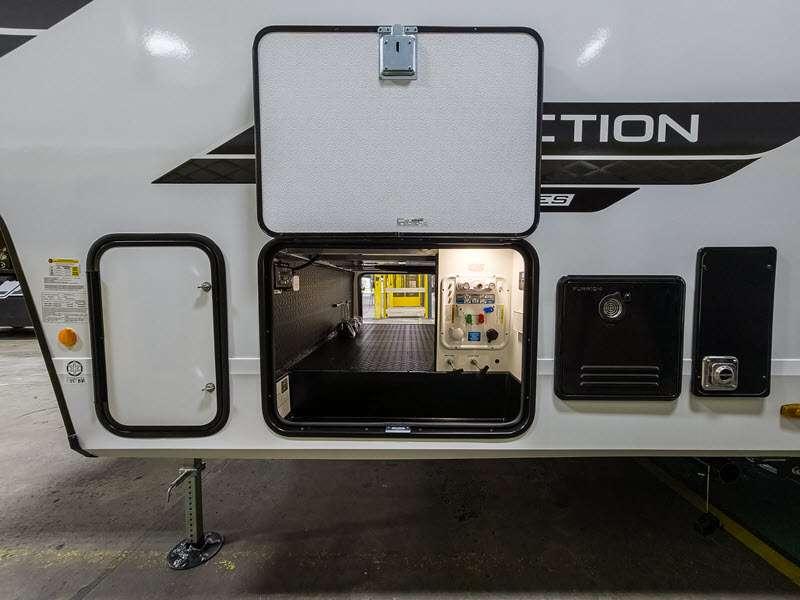

  • Battery Kill Switch in Pass Thru Storage Area
  • 90 Degree Turn Radius Pin Box
  • 30# LP Bottles (2)
  • 30" Radius Entry Door
  • Outside Speakers
  • Outside Shower
  • Factory Installed Roof Ladder
  • Under Carriage Spare Tire and Carrier
  • High-Capacity Water Pump with Interior and Exterior Switch
  • Extra Large 1-1/2" Fresh Water Drain Valve

Construction

  • Gel Coated Fiberglass Exterior
  • Residential 5" Truss Rafters (16" O.C.)
  • Walk On Roof Decking
  • Fiberglass and Radiant Foil Roof and Front Cap Insulation
  • One-Piece TPO Roof Membrane with 12-Year Warranty
  • Easy Access Low Point Drain Valves
  • Laminated Aluminum Framed Rear Wall (R-9)
  • Laminated Aluminum Framed Side Walls (R-9)
  • Laminated Aluminum Framed Roof and End Walls in Slide Rooms (R-9)
  • Aluminum Framed Main Floor (R-30*)
  • Residential Wood Framed Roof (R-40*)

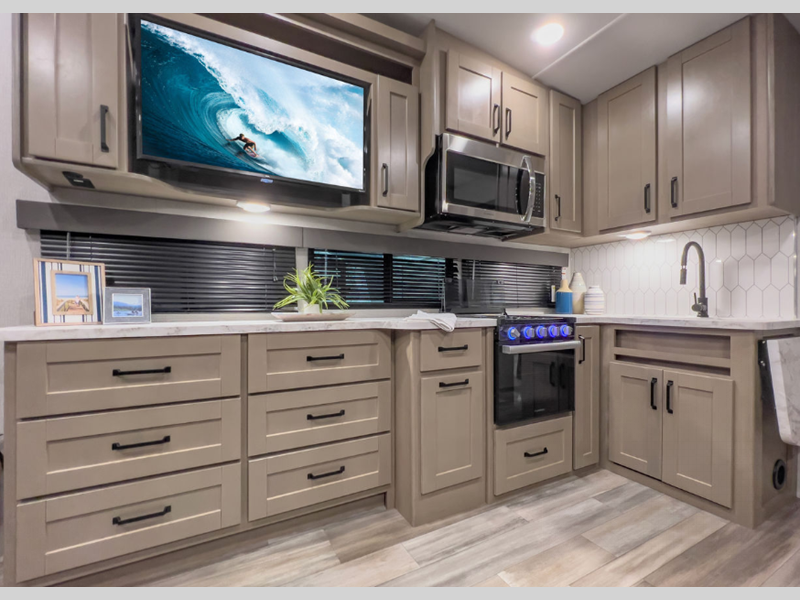

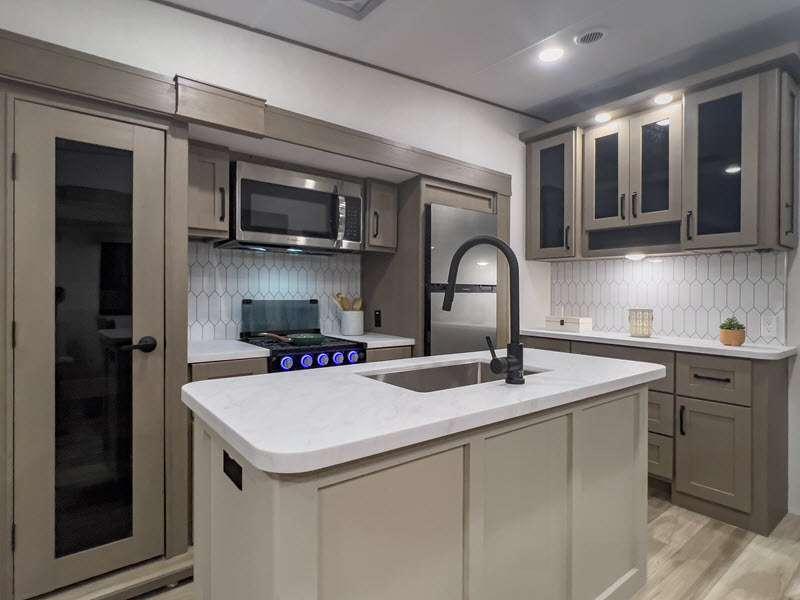

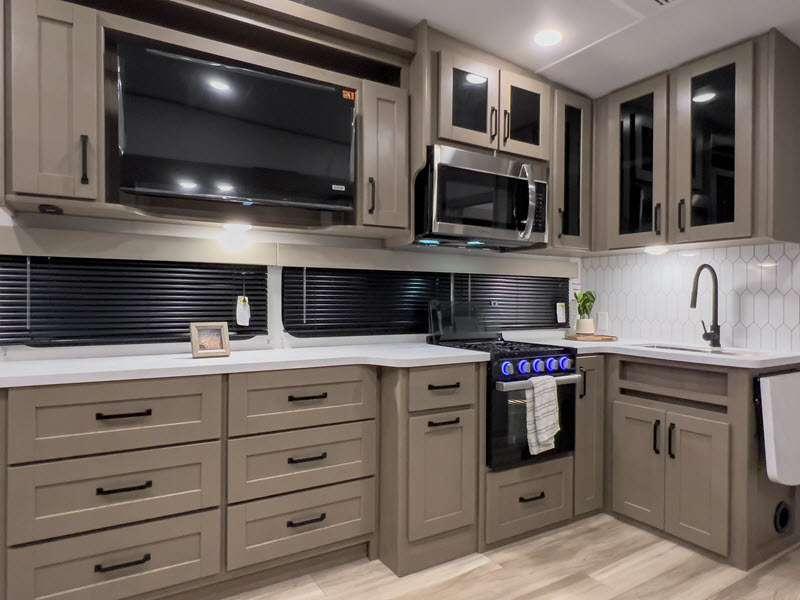

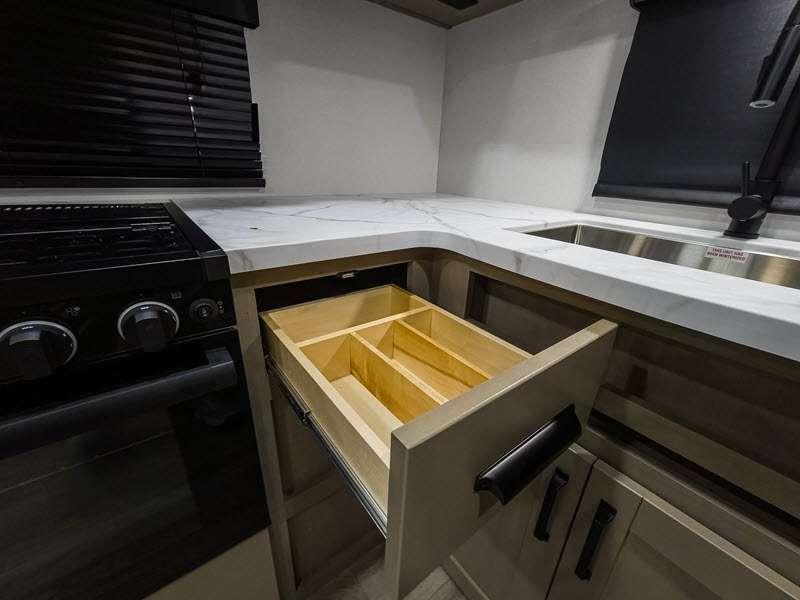

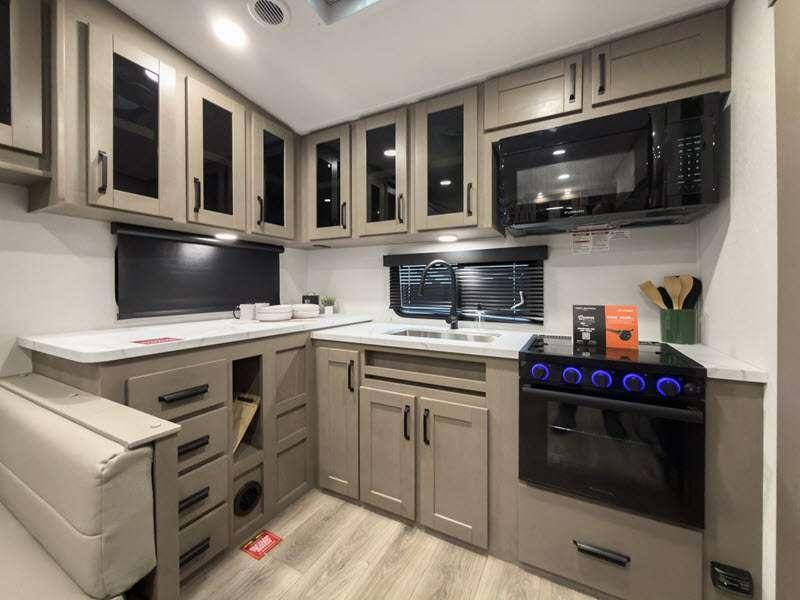

Kitchen

  • Gunstock Fixtures and Hardware
  • Deep, Under-mount Kitchen Sink
  • Hardwood Galley Slide Trim Moldings and End Caps

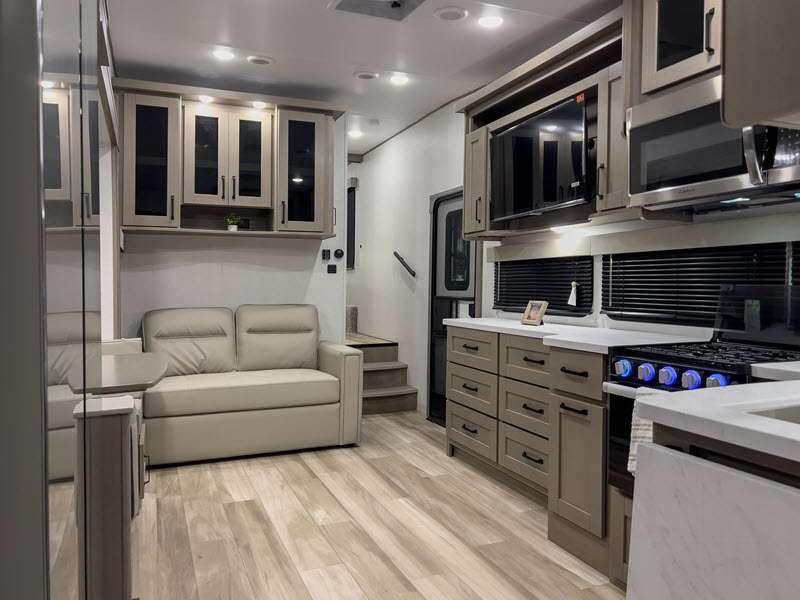

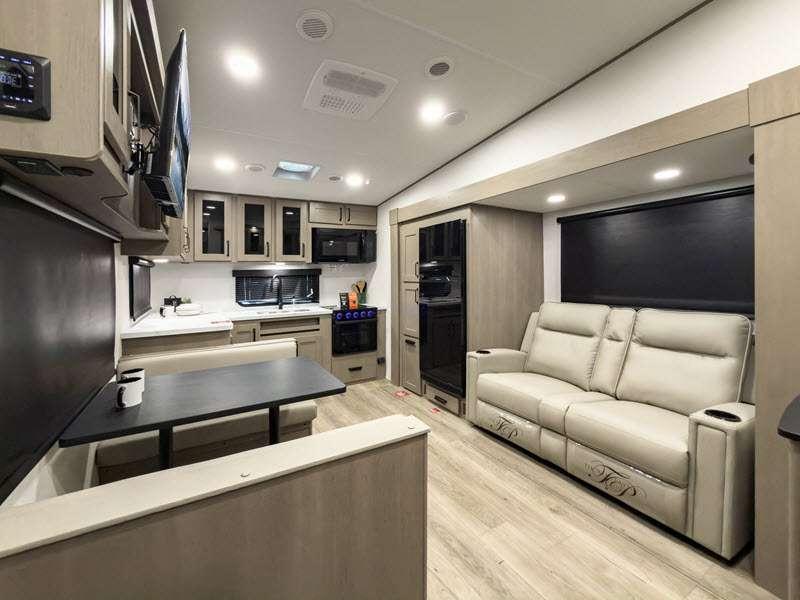

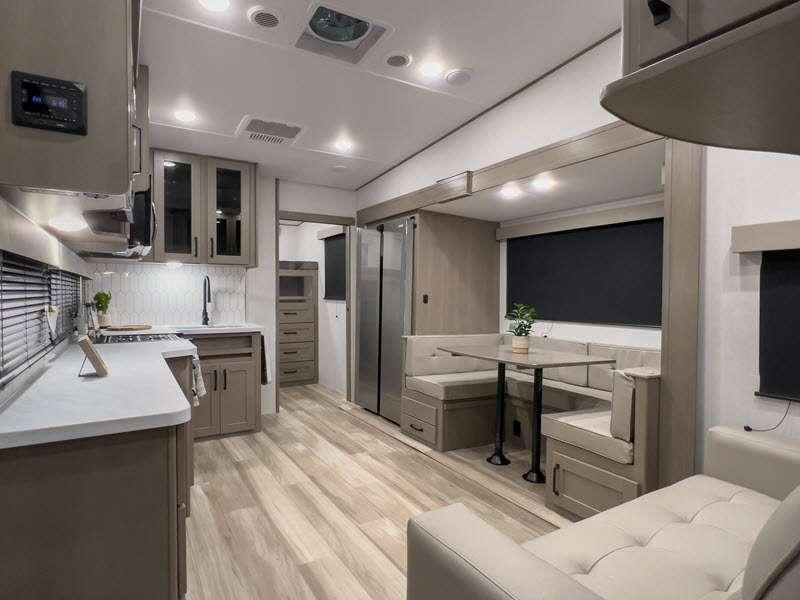

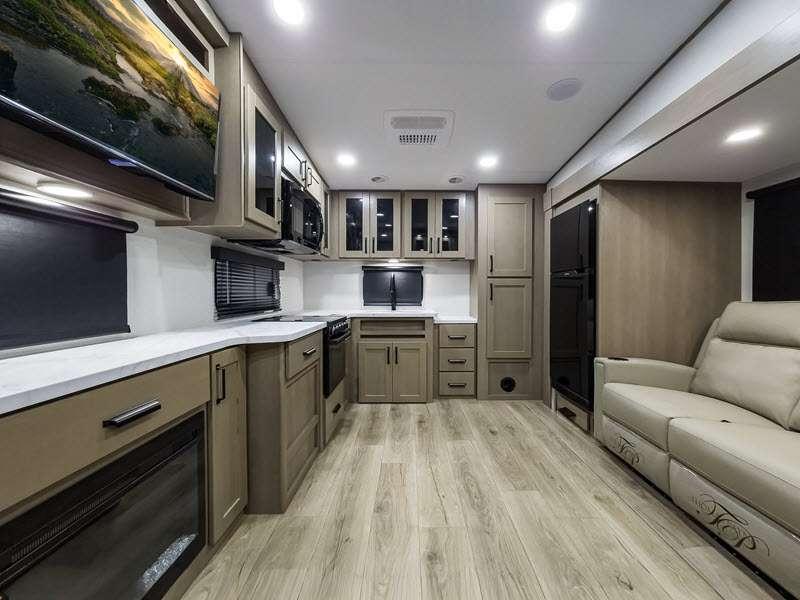

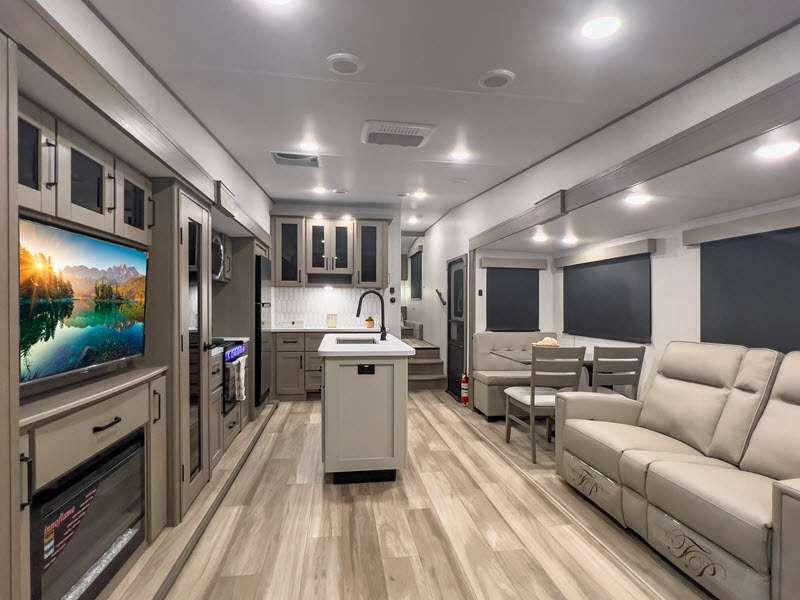

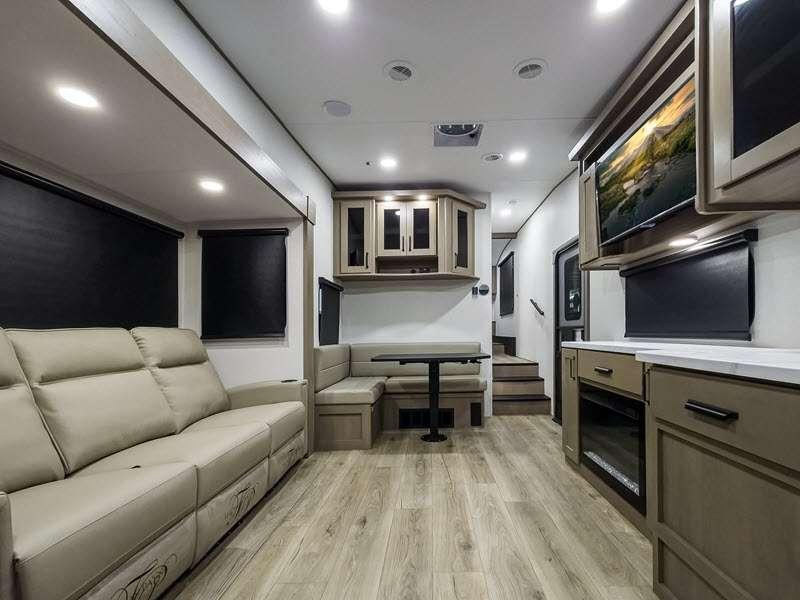

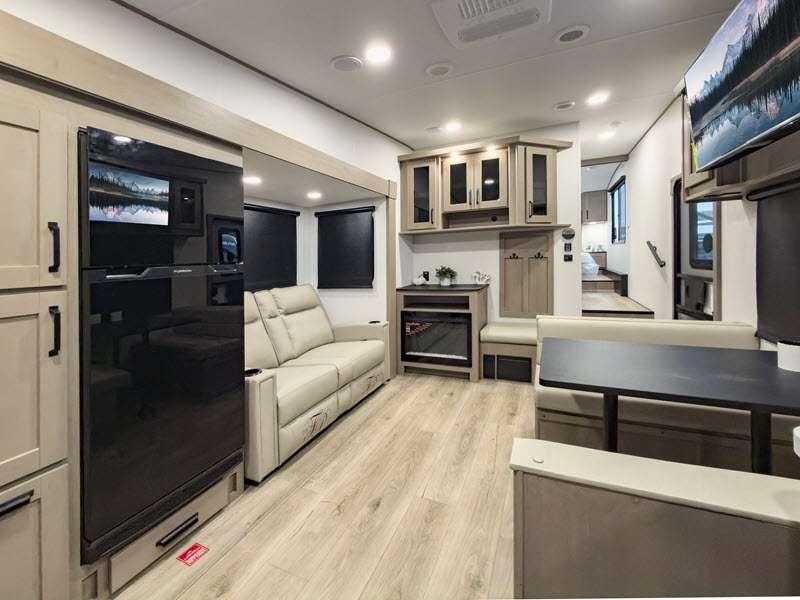

Interior

  • Hand Rubbed Maple Cabinet Doors
  • Solid Hardwood Drawer Fronts
  • Louvered Tread Steps to Bedroom
  • Solid Core Cabinet Stiles
  • Pre-Drilled and Screwed Cabinetry
  • Ball Bearing Full Extension Drawer Glides
  • Large Panoramic Slide Room Windows
  • Premium Congoleum Flooring
  • Ductless Flooring Throughout Living Area
  • Residential Style Window Treatment
  • Night Shade Window Covering
  • LED Lighting Throughout with Motion Sensors (Key Areas)

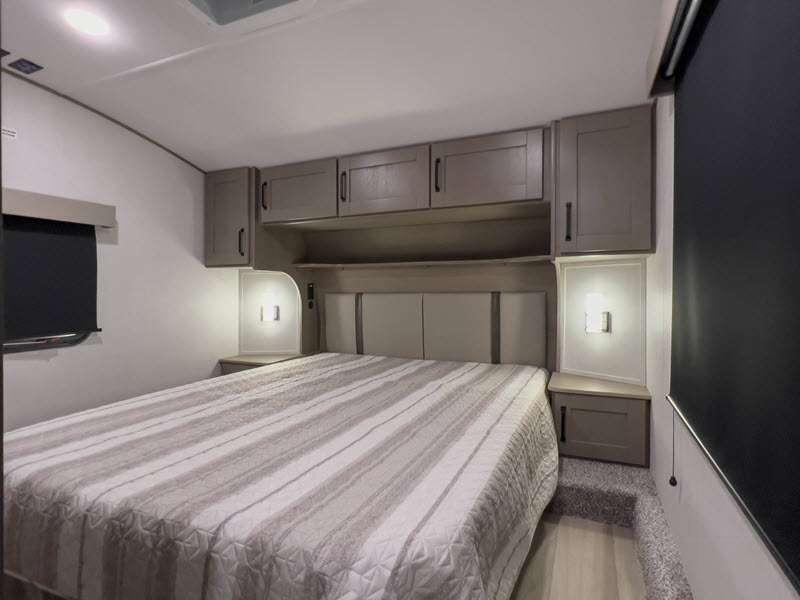

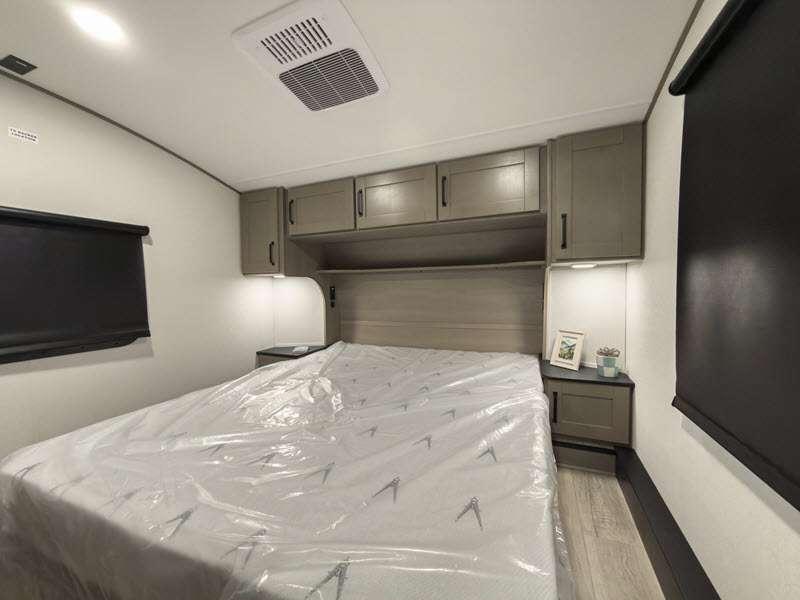

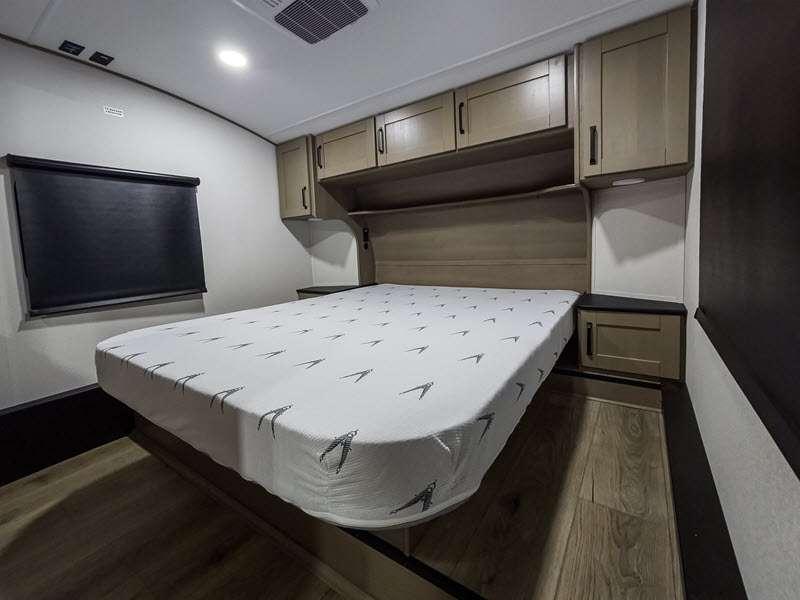

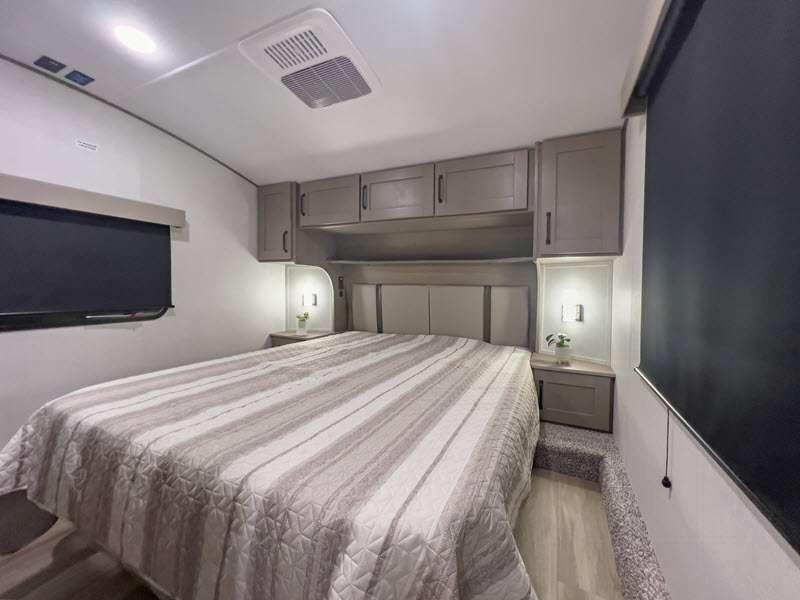

Bedroom

  • King Size Wardrobe
  • Oversized Under-bed Storage
  • Residential Bedspread
  • Bedroom Heat Registers
  • Closeable A/C Vents
  • TV and Cable Prep

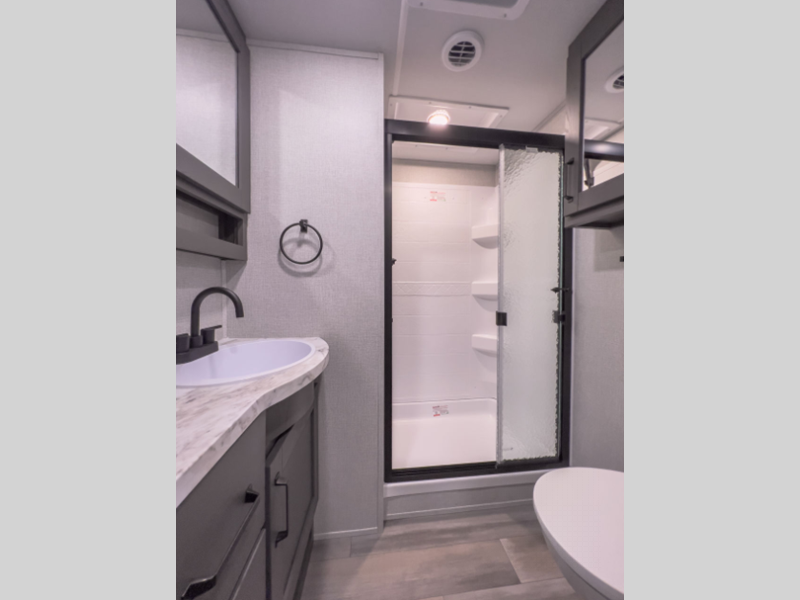

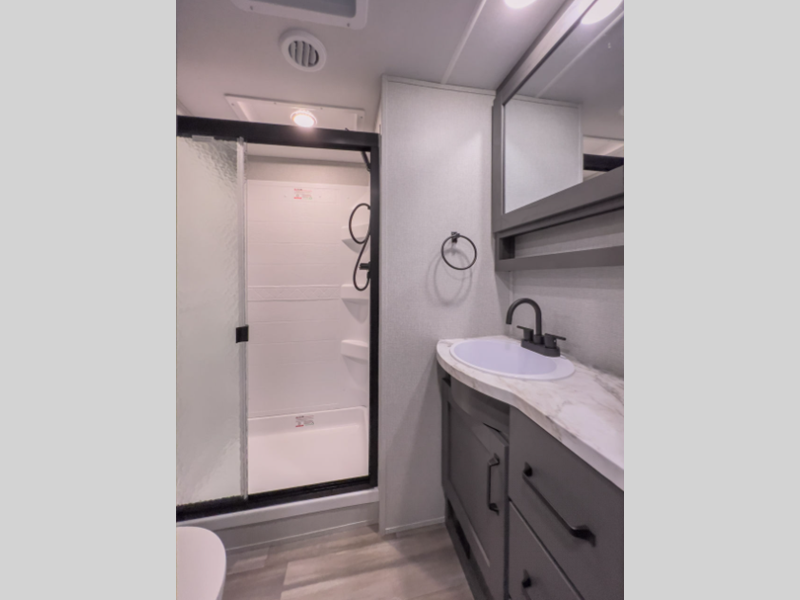

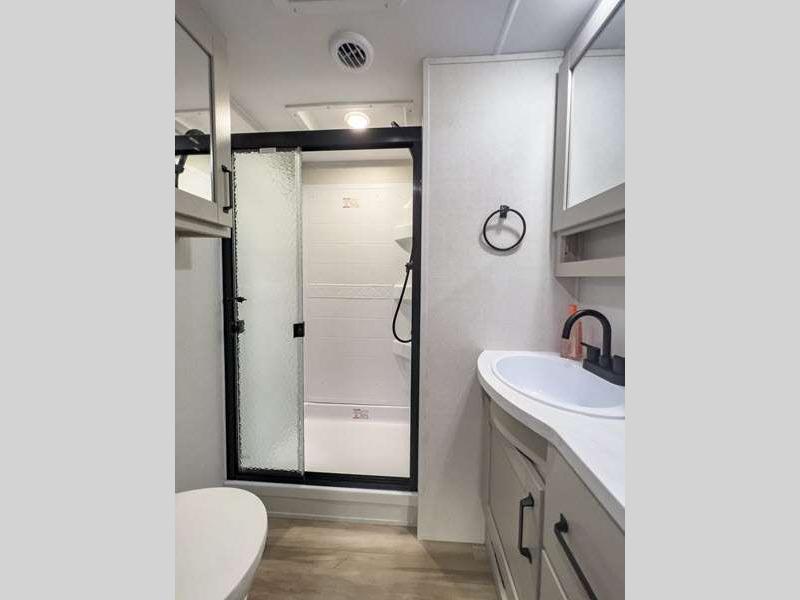

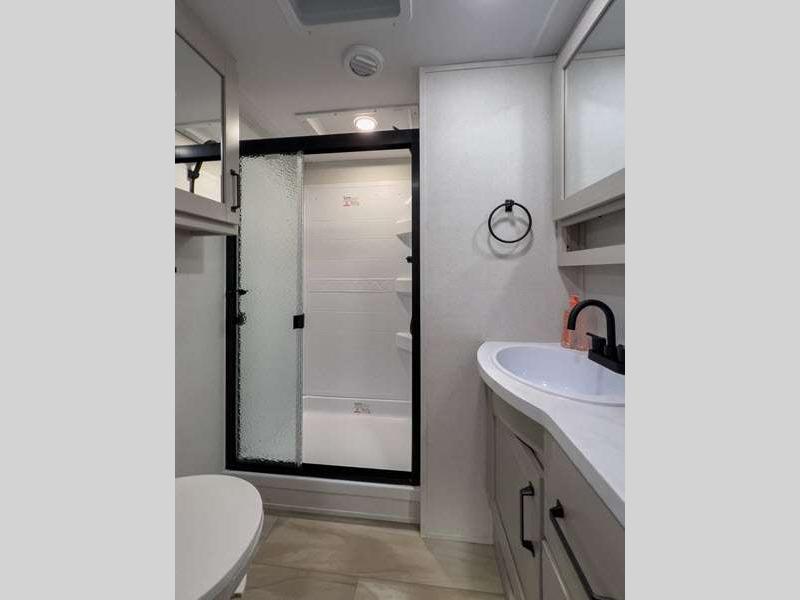

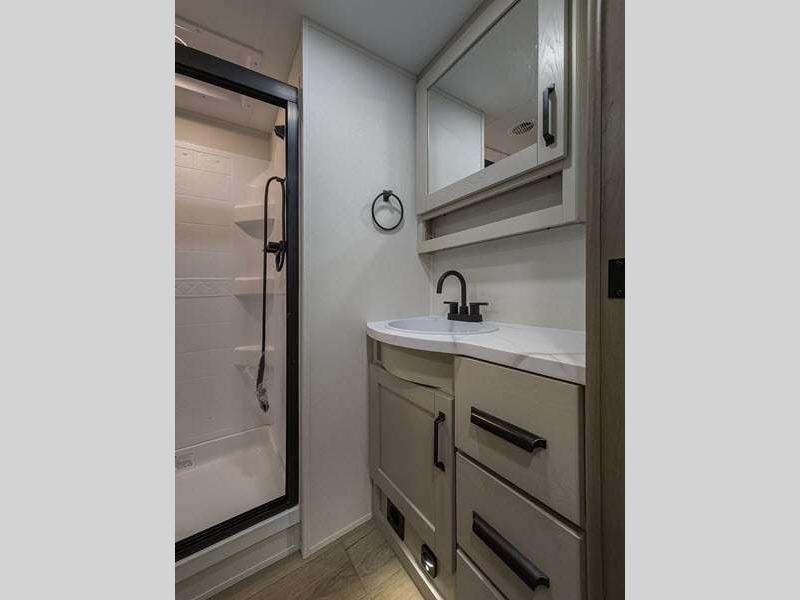

Bathroom

  • 30"x36" Residential Walk-In Shower
  • Wide View Skylight Over Shower
  • Heat Duct and A/C Vents in Bathroom
  • Power Vent Fan
  • Extra Large Lav Top with Stainless Steel Sink
  • Large Medicine Cabinet with Mirror

Options

  • Tri-fold Sofa IPO Theater Seating

Peace of Mind Package (Mandatory)

  • Aluminum "Tread Lite" Entry Steps
  • 8 cu. Ft. Refrigerator
  • Residential Pull-down Sprayer Faucet
  • Walk on Roof
  • Residential Cabinetry
  • Universal All-In-One Docking Station
  • Quick Recovery Water Heater
  • Black Tank Flush
  • Aluminum Rims
  • Spare Tire & Carrier
  • Nitrogen Filled Radial Tires
  • 90 Degree Turn Radius Pinbox
  • Fiberglass Front Cap

Power Package (Mandatory)

  • Adjustable Power Awning w/LED Lights
  • LED Interior Lighting, Motion Sensor Pass Thru Lighting (LED)
  • AM/FM/CD/DVD HDMI Bluetooth Stereo
  • High Definition LED Television w/Swing-arm (Living Area)
  • 30 AMP Service
  • Hi Definition LED TV
  • Detachable Power Cord w/LED Light
  • 15k Ducted Main AC
  • Motion Sensor Entry Lighting (LED)

Arctic 4-Season Protection Package (Mandatory)

  • 35k BTU High Capacity Furnace
  • Double Insulated Roof & Front Cap
  • Heated & Enclosed Dump Valves

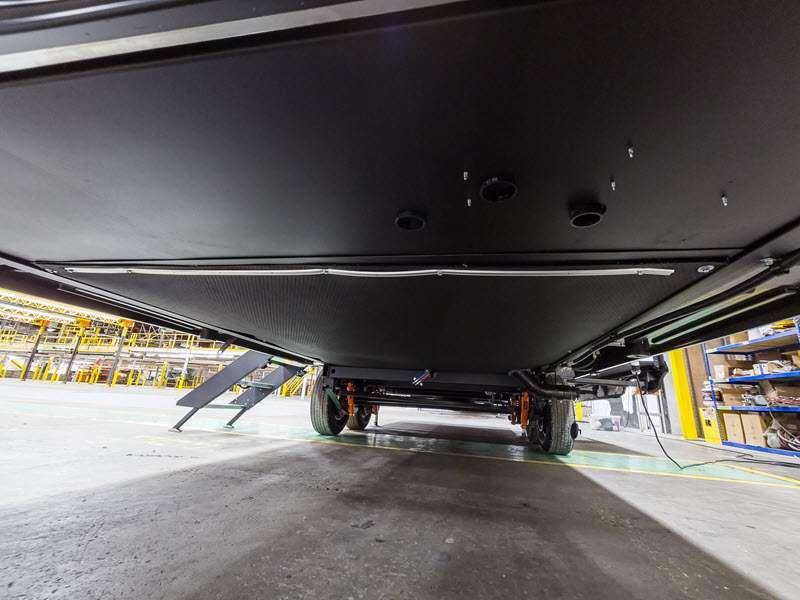

  • Heated & Enclosed Underbelly w/circulating Heat
  • Thermofoil Insulation under holding tanks
  • Zero Degree Extended Season Enjoyment
  • EZ Winterization
  • Heated Pass Thru Storage Area
  • Insulated Slide out Floors
  • Double Insulated Roof and Front Cap
  • Attic Vent

Please see us for a complete list of features and available options!

All standard features and specifications are subject to change.
